The HydroGen series HG PRO M can generate up to 20 L/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). The HG PRO M includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using ultra pure water. No acid or alkaline solutions are used.
The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity. It is completely maintenance-free. The HG PRO M series provides the ideal Hydrogen for many applications, such as CVD, Central Laboratory Supply and other applications in need for reliable supply of UHP. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HG RACK 19” 2U BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). The HG 2U 19 inch BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HG 19 inch 2U BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HG RACK 19“ 2U PRO is able to generate up to 600cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI).
The HG RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HG RACK 19 inch 2U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety.
Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HG ST PRO is able to generate up to 600 cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI).
The HG ST PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HG ST PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit
The High purity NitroGen series NG EOLO produce laboratory high grade nitrogen for most of the laboratory applications and equipments.
Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.
The NG EOLO, once connected to an external source of compressed air, removes oxygen from air to less than 1 ppm.
The typical flows are: 250, 500, 750, 1000, 1300 and 4000 cc/min.
The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications.

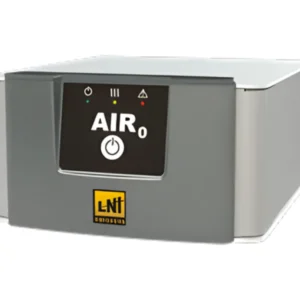

The AirGen series KZA FID AIR V2 is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. Very compact, the KZA FID AIR V2 can purify up to 3 L/min of compressed Air and can bear a pressure up to 6.5 bar (94 PSI). The filtration of the hydrocarbons is performed by using a catalytic oven filled with palladium.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device.
The KZA FID AIR V2 has a very simple and efficient interface. It can also be managed by the Hydrogen series KUBE is ideal to supply Hydrocarbon free Air to FID detectors.

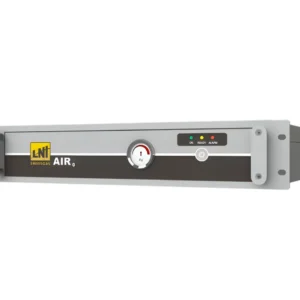

The AirGen series RACK ZA FID is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. Very compact, the RACK ZA FID Air can purify up to 50 L/min of compressed Air and can bear a pressure up to 6.5 bar (94 PSI). The filtration of the hydrocarbons is performed by using a catalytic oven filled with palladium. The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device.
The RACK ZA FID has a very simple and efficient interface. It can also be managed by the HydroGen series and is ideal to supply Hydrocarbon free Air to FID detectors.

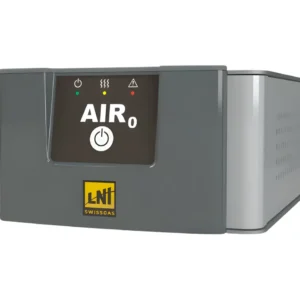

The AirGen series ZA FID AIR is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. Very compact, the ZA FID AIR can purify up to 30 L/min of compressed Air and can bear a pressure up to 7 bar (101.5 psi). The filtration of the hydrocarbons is performed by using a catalytic oven filled with palladium. The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device.
The ZA FID AIR has a very simple and efficient interface. It can also be managed by the HydroGen series HG PRO and HG BASIC and is ideal to supply Hydrocarbon free Air to FID detectors.

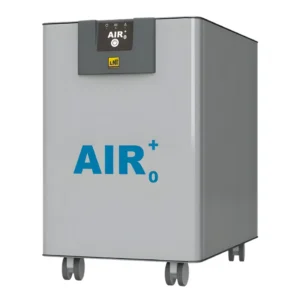

The AirGen series ZA FID AIR C PLUS is able to remove the total hydrocarbons to less than 0.05 ppm. Very compact, the ZA FID AIR C PLUS is available with a low noise built-in pistons compressor, 100% oil-free.
The filtration of the hydrocarbons is performed using a catalytic oven filled with palladium. The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device. The ZA FID AIR C PLUS has a very simple and efficient interface. It can also be managed by the HydroGen series HG PRO and HG BASIC and is ideal to supply Hydrocarbon free Air to FID detectors.

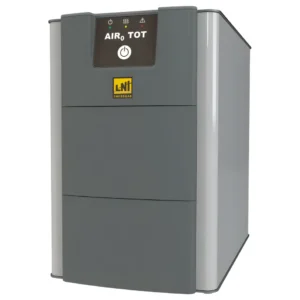

The AirGen series ZA-TOTAL is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. It is also able to remove other pollutant like Humidity, CO2, CO, NOx, SO2 and Hydrocarbons. Very small in size, the ZA-TOTAL can filter up to 30 L/min of compressed Air and can withstand a pressure up to 8 bar (115 PSI). The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.

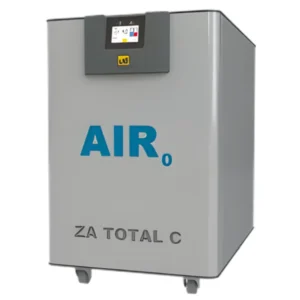

The AirGen series ZA-TOTAL-C is able to remove the total hydrocarbons to less than 0.05 ppm and other pollutant like Humidity, CO2, CO, NOx, SO2. ZA-TOTAL-C is available with a smart low noise built-in pistons compressor, 100% oil-free.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with with an active charcoal filter.

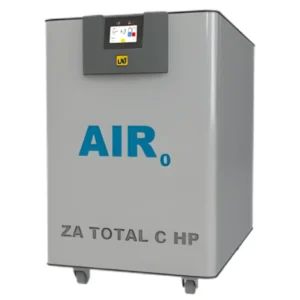

The AirGen series ZA TOTAL C HP is able to remove the total hydrocarbons to less than 0.05 ppm and other pollutant like Humidity, CO2, CO, NOx, SO2. ZA TOTAL C HP is available with a smart low noise built-in pistons compressor, 100% oil-free.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.

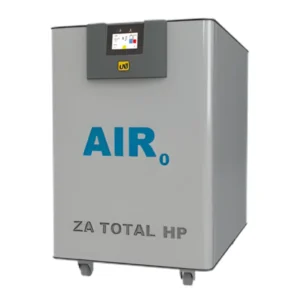

The AirGen series ZA TOTAL HP is able to remove the total hydrocarbons to less than 0.05 ppm and other pollutant like Humidity, CO2, CO, NOx, SO2.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. The hydrocarbons and CO are removed with a catalytic oven filled with palladium, the Humidity and CO2 is removed with a dual molecular sieve PSA system, NO is removed with Purafil and other components are removed with an active charcoal filter.
NGA SIRIO produces laboratory high grade nitrogen and clean dry air for most of the laboratory applications and equipments.
Designed with safety and convenience in mind, this system generates purified nitrogen, eliminating the need for inconvenient cumbersome high-pressure gas cylinders.
The NGA SIRIO removes oxygen from air to less than 5 ppm and HC pollutants to less than 0.1ppm (if the optional scrubber is installed). NGA SIRIO has smart low noise built-in pistons compressor, 100% oil-free.
The Ultra Pure Nitrogen is mainly used to feed ICP, ELSD, GC, FTIR and is ideal as nitrogen gas supply for all kind of Laboratory and Chromatography applications
NGA CASTORE XS iQ SHI is a Nitrogen Generator with Membrane technology.
It is engineered to transform standard compressed air into a safe, regulated supply of Nitrogen and Air up to 40 l/min with a suitable LC-MS purity grade.
The CASTORE XS iQ SHI with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for Shimadzu MS instruments such as LC-MS 8040, 8045, 8050, 8060.
It can be used for LC-MS and the evaporation of solvents in samples being analysed.
The new iQ generators are equipped with an innovative direct drive motor-scroll compressor system (oil less) with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The NitroGen series NGA CASTORE XL iQ SHI is a Membrane Nitrogen and dry air Generator. It is engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 30 L/min with a purity up to 99.8%. A channel can provide up to 30 L/min of compressed, dry, filtered and regulated air.
This is equipped with a scroll built-in oil less compressor with inverter technology. The new iQ series is equipped with the innovative direct drive motor-compressor system that result in lower noise than the previous version.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor.
Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The CASTORE XL iQ SHI with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure of all Shimadzu LCMS applications. It can comfortably support the latest Shimadzu LC-MS instruments including the LCMS-8060NX.
NGA CASTORE XL iQ MPAES is a Nitrogen Generator with Membrane technology.
It is engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 40 L/min with a purity up to 99.95% plus a second outlet of dry and clean air. A special carbon filter is used to remove VOC.
The CASTORE XL iQ MPAES with its dual Nitrogen and Air outlets has been developed to meet specific requirements in term of gas, flow, purity and pressure for Agilent MP AES applications.
It can be used for LC-MS and the evaporation of solvents in samples being analysed.
The new iQ generators are equipped with an innovative direct drive motor-scroll compressor system (oil less) with inverter technology.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor. Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The NitroGen series NG CASTORE XL iQ 3D PRINTING use Membrane technology.
They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen up to 70 L/min with a purity up to 99.9%. The generator produces a continuos flow of Nitrogen with Laser grade in 24/7 production process worldwide, even under the most challenging environments to guarantee frictionless industrial use.
This NG series is equipped with a scroll built-in oil less compressor with inverter technology. The new iQ series is equipped with the innovative direct drive motor-compressor system that result in lower noise than the previous version.
The exclusive electronic flow control combined with the compressor control by the inverter allows to generate Nitrogen with a higher purity using a smaller volume at less pressure of air which results in reduced energy costs and increase the life time of the compressor.
Continuous control of the operating parameters of Nitrogen allows to maintain the system at its maximum efficiency.
The CASTORE XL iQ has been developed to meet specific requirements in term of gas, flow, purity and pressure for Laser applications.
