The Sonimix 2130 NOx converter tester has been designed to generate a stable NO2 concentration with a small reaction time. It is based on the sonic nozzles technology (ISO 6145-6 technology) and high stability pressure regulators.
The NOx converter tester is often used together with a multi-steps gas divider also based on sonic nozzles and high precision pressure regulators.
In order to validate NOx measurements, the efficiency of the NO2 converter must be higher than 90 %, it is therefore very important to check easily and precisely the efficiency of the NO2 converter.
The SONIMIX 2130 converter tester is based on the process known under the name of Gaseous Phase Titration
The Sonimix 4001 is a stand alone ozone primary transfer standard able to generate ozone together with dry or wet air (optional) allowing to calibrate the ozone monitors in several points. It generates an outflow of 3 Nl/min air containing 10 to 1000 ppb O3, with stability and reproducibility of the concentration better than 1% relative. The extended range model generates 10 ppb to 10 ppm at 3 L/min and 10 ppm to 35 ppm at 0.9 L/min.
The Sonimix 4001 is using pressure regulator and sonic nozzles and an ozone generator including thermostatisation and regulation by UV light photometer measurement with atmospheric pressure and temperature corrections (US EPA method of UV absorption by ozone, Beer-Lambert law). The ozone analyser is built with 1 reference UV light detectors that measure in alternance the UV intensity without any ozone and then the same UV light but through the generated ozone. With these 2 values, the processor calculates the amount of ozone generated.
The multigas calibrator with GPT, ozone and self re-generable zero air generator, Sonimix 3012/3022, is an instrument designed to calibrate manually or by remote control up to 6 monitors installed in an air pollution monitoring station, such as SO2, HC, BTX, CO, NOx and O3.
The Sonimix 3012/3022 is equipped with
– an inlet for high concentration mixtures of diluted gases such as NO, NO2, SO2, CO, HC, BTX or mixtures of several compatible polluants in the same cylinder.
– a zero air generator composed of an internal compressor with self re-generable filters that removes moisture, O3, NOx, SO2, HC, BTX and optionally CO and CH4.
– a binary gas dilutor with two inlets (diluted gas and air), based on sonic nozzles (ISO 6145-6 standard)
The ozone generator is regulated by UV-light feedback and compensated from the atmospheric pressure and ambient temperature variations, with alarm on the drift of UV-light as well as the circuits for the GPT.
The multipoint multigas calibrator SONIMIX 6000C1 is an instrument designed to calibrate manually or by remote control up to 5 gas monitors installed in an Air pollution monitoring station, such as SO2, HC or BTX, CO, NOx and O3.
With the optional Ozone generator and GPT circuitry it is possible to verify the coherence of NO, NO2 and O3 analysers, and to determine the converter’s efficiency of the NOx monitors.
The interface allows to Configure the calibrator and to perform the manual operations of calibrations and GPT necessary after the maintenance process on the analysers.
Equipped with a binary gas mixer, based on high precision mass flow controllers and mechanical pressure regulators the SONIMIX 6000C1 can generate accurate dilution to low ppb level.
Options :
– Permeation oven of different sizes and material (up to 3 permeation oven per device), with a specific oven able to contain up to 6 BTEX permeation tubes.
– Ozone generator and GPT circuits.
The multigas Sonimix 6000 C2 calibrator is designed to calibrate manually or by remote control up to 6 monitors installed in an air pollution monitoring station, for parameters such as SO2, HC, BTX, CO, NOx and O3.
The Sonimix 6000 C2 includes Mass Flow Controllers, GPT, ozone and self re-generable zero air generator and is equipped with
– an inlet for high concentration mixtures of diluted gases such as NO, NO2, SO2, CO, HC, BTX or mixtures of several compatible pollutants in the same cylinder.
– a zero air generator composed of an internal compressor with self re-generable filters, removes following components: moisture, O3, NOx, SO2, HC, BTX and optionally CO and CH4.
– a binary gas dilutor of two inlets (diluted gas and air), including 2 Mass Flow Controllers to generate the zero and other dilutions ratios going from 1/100 to 1/1000 (other values upon request).
The input pressures are monitored by two pressure switches. The ozone generator is regulated by UV-light feedback and is compensated from the atmospheric pressure and ambient temperature variations. It includes alarm on the UV power drift as well as the circuits for the Gas Phase Titration (GPT).
The Sonimix 2106 is a gas mixer mainly used to calibrate and linearize gas monitors and to generate specific gas mixtures .
The Sonimix 2106 is based on the principle of gas flow through sonic nozzles and is built according the ISO 6145/6 standard. The sonic nozzle principle makes it the most accurate and stable device on the market. It generates binary mixtures from 0 to 100% in fixed steps in a pure mechanical process without electronic regulation and without any influence from ambient pressure or temperature.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
Optional Auto Diagnostic functions for quick check of the instrument performances (patented) is available.
Optional Nox converter tester.
Proven metrological performances – Optional ISO 17025 calibration reports will be delivered from our accredited laboratory. In this way the device can be easily linked with National Standards (NIST, METAS, UKA, etc)
The SONIMIX 3030 is a 1-point dilution system designed for gas calibration and testing applications. Based on the principle of sonic nozzles with back pressure compensation, it ensures highly accurate and stable flow without the need for electronic regulation.
The unit is equipped with two manual 2/2 valves at the inlet and operates through a purely mechanical process, making it reliable and completely independent from ambient pressure or temperature variations.
This model has been designed for applications that request only 1 concentration. The advantage is being the use of high concentration cylinders (pure, in %, ppm or ppb) and dilute it up to 1/1000.
This method will increase the gas stability and save the consumption of the expensive gas.
The Sonimix 7050 is a simplified gas mixer based on the principle of gas stream through mass flow controllers (MFC) and mainly used to calibrate and linearize Gas Monitors. Built according to the ISO 6145/7 normalization, the Sonimix 7050 is totally compatible with the US EPA methods and can be easily linked with National Standards (NIST, METAS, UKAS…).
The Sonimix 7050 Multi range gas mixer performs a large range of gas mixtures from high concentration gas cylinders
The Sonimix 7100 is a gas mixer mainly used to calibrate and linearize gas monitors and to generate specific gas mixtures .
The Sonimix 7100 is based on the principle of gas flow through MFC (Mass Flow Controllers) and is built according the ISO 6145/7 standards. This instrument provides a very high flexibility allowing to combine multigas mixtures (up to 5 gases + a balance gas) and multi-range functionality.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
All models make automatic calculation in function of the used gases types. The Sonimix 7100 is totally compatible with the US EPA methods and can be easily linked with National Standards (NIST, METAS, UKAS…)
Each mass flow controller is factory calibrated in 10 points by a traceable primary standard.
The HydroGen series HGA RACK 19” 2U BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA 2U 19 inch BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HGA 19 inch 2U BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly controls the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HGA RACK 19” 2U PRO is able to generate up to 600 cc/min Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA RACK 19 inch 2U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HGA RACK 19 inch 2U PRO is the ideal Hydrogen and Air Generator for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HGA ST BASIC is able to generate up to 600 cc/min of Hydrogen with purity better than 99.9999% and pressure up to 10 bar (145 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min. The HGA ST BASIC includes a new long life multilayer electrolytic cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are used.
The innovative drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to its innovative humidity safe guard, HGA ST BASIC is completely maintenance-free and allows continuous operation, 24 hours a day.
The on-board CPU automatically checks for internal leaks and constantly controls the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box.
The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
The HydroGen series HGA ST PRO is able to generate up to 600 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 psi). An AirGen output can deliver hydrocarbon free pure Air with a flow up to 2000 cc/min.
The HGA ST PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free.
The HGA ST PRO is the ideal Hydrogen and Air Generator for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

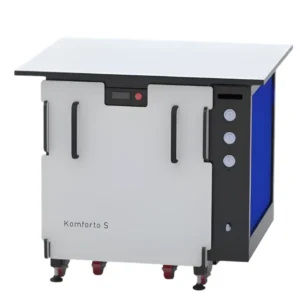

The NitroGen series KONTINUA are Membrane Nitrogen Generators designed for LNI KOMFORTO and TABLO benches. They are engineered to transform standard compressed air into a safe, regulated supply of Nitrogen with a purity up to 99.5%.
The KONTINUA has been developed to meet specific requirements in terms of gas, flow, purity and pressure in LC-MS applications. It can be also used for the evaporation of solvents in samples being analysed.
The AirGen series KZA FID Air is able to remove the total hydrocarbons to less than 0.05 ppm from the external compressed Air. Very compact, the KZA FID Air can purify up to 15 L/min of compressed Air and can bear a pressure up to 7 bar (101 PSI). The filtration of the hydrocarbons is performed by using a catalytic oven filled with palladium.
The reduction of hydrocarbons, including methane, and carbon monoxide decrease the background noise level and gives much better baseline stability, considerably increasing detector sensitivity and ensuring precise analytical results. High efficiency coalescing pre-filtration and post filtration of particulate size greater than 0.01 microns are used to prevent any kind of particles from entering the analytical device.
The KZA FID Air has a very simple and efficient interface. It can also be managed by the Hydrogen series KUBE is ideal to supply Hydrocarbon free Air to FID detectors.
The HydroGen series HG 5U PRO 2000 is able to generate 2000 cc/min of Hydrogen with purity better than 99.99999% and pressure up to 16 bar (232 PSI). The HG 5U PRO includes an electrolytic cell with polymeric membrane (PEM) using distilled water. The two-column PSA drying system with automatic regeneration ensures the maximum grade of hydrogen purity, and is completely maintenance-free. The HG 5U PRO is the ideal Hydrogen for all GC-FID detectors. The on-board CPU constantly controls the operating parameters to guarantee full safety. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.
